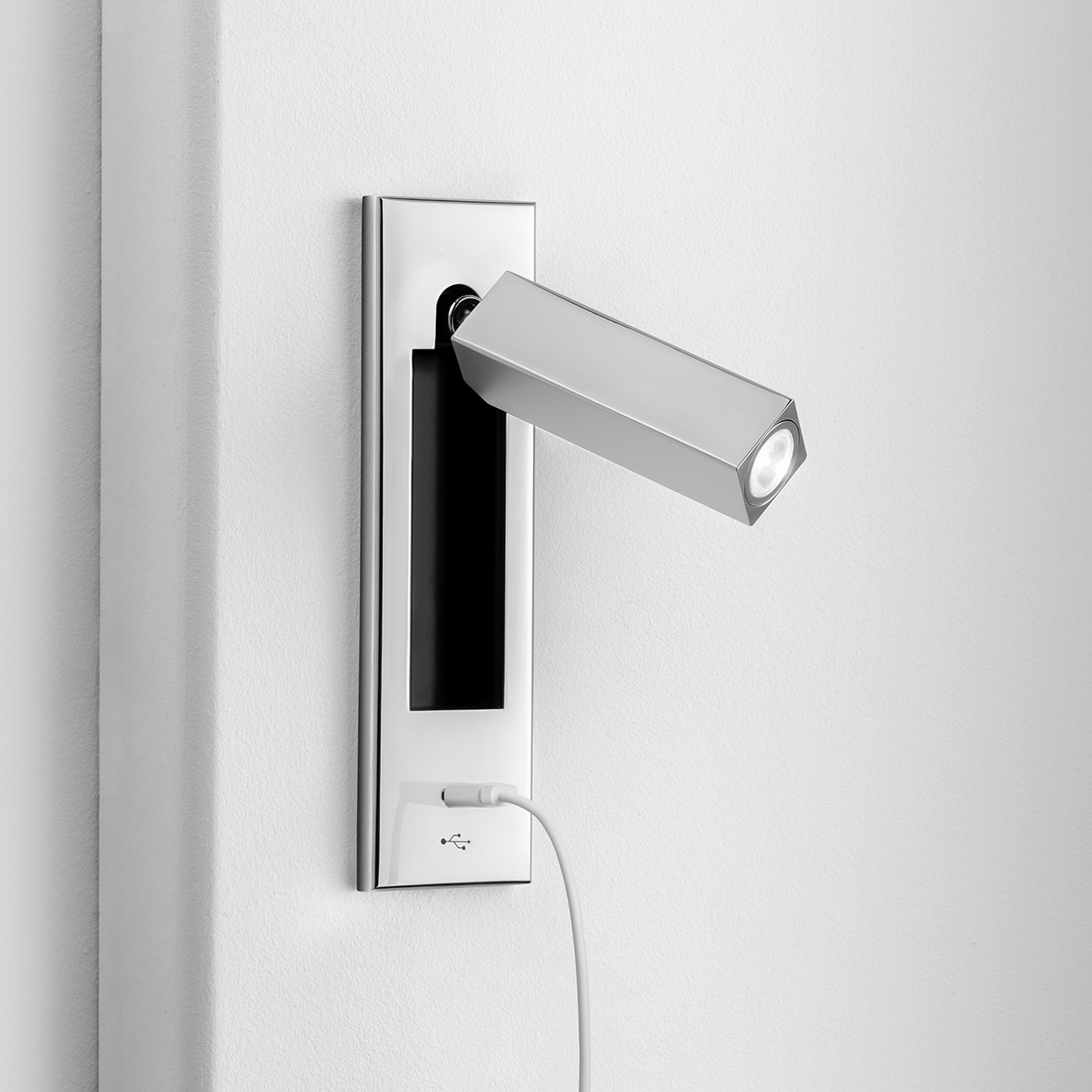

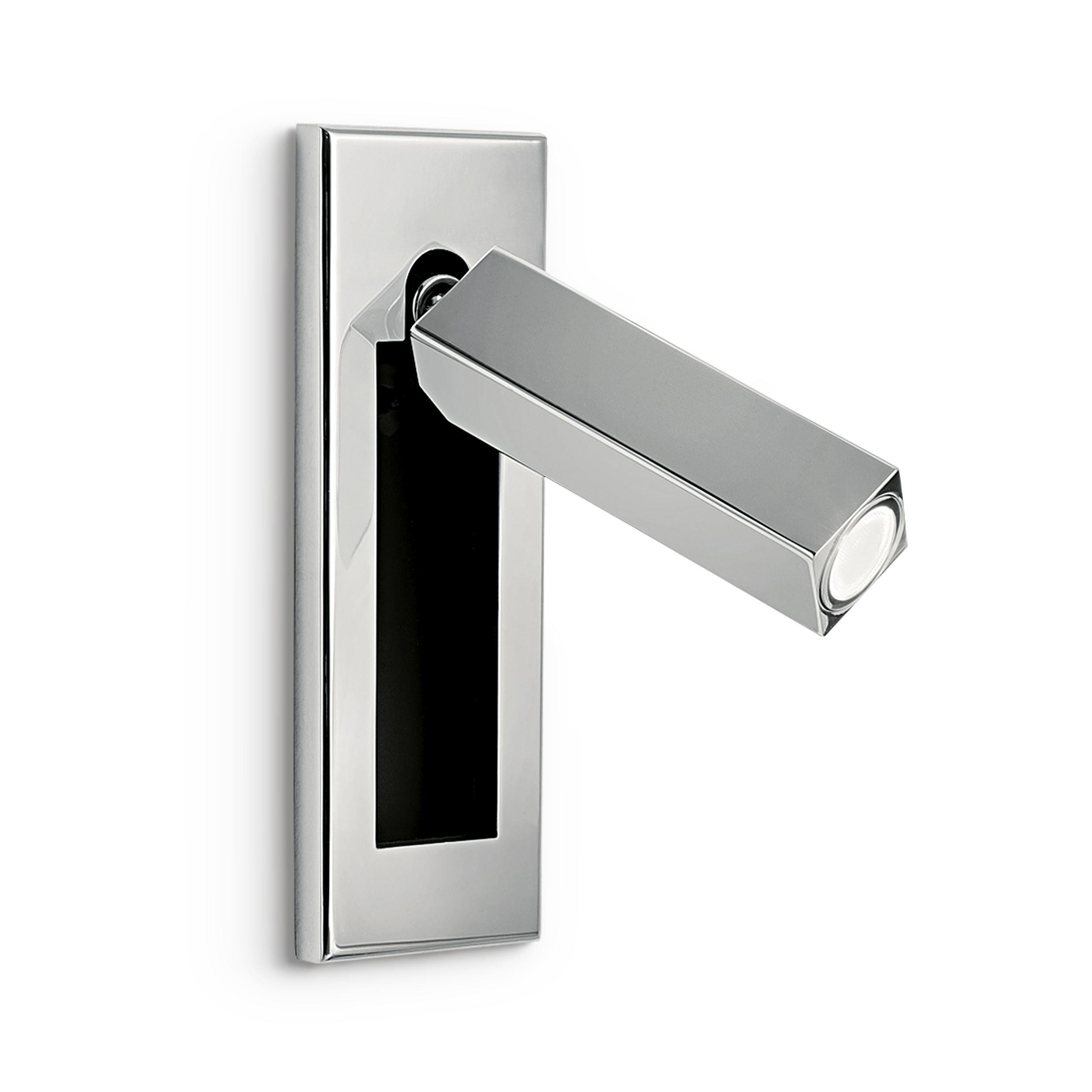

LED Dock
LED/5/1/USBC/C
New AUGMENTED REALITY feature
View in your space
View in your space on your phone with our Augmented Reality feature
Try nowLED Dock
LED/5/1/USBC/CFeatures
The Dock range can be offered to special order with an integral USB-C port fitted for minimum 50 pieces. Note: LED driver is integral but USB transformer is remote. For headboard mounting only. For USA market can be offered hardwired or with cable and plug.
Finish
Polished Chrome (C)
Certifications
Dimensions
Height
178mm / 7in
Width
50mm / 2in
Projection
108mm / 4.3in
Backplate - Height/Width
178 x 50mm / 7 x 2in
Weight
0.5kg / 1.1lb
Technical Data
Material
Steel and Aluminium
Integral Light Source
Integral LED 1W 2700K
Driver Location
Integral
USB Port
Yes
Dimmable as standard
By request only
CE
Yes
UKCA
Yes
UL Approved
Yes
Insulation Rating
Class I
IP Rating
IP20
Switch Type
Docking Switch
Cutout - Height/Width
145 x 38mm / 5.7 x 1.5in

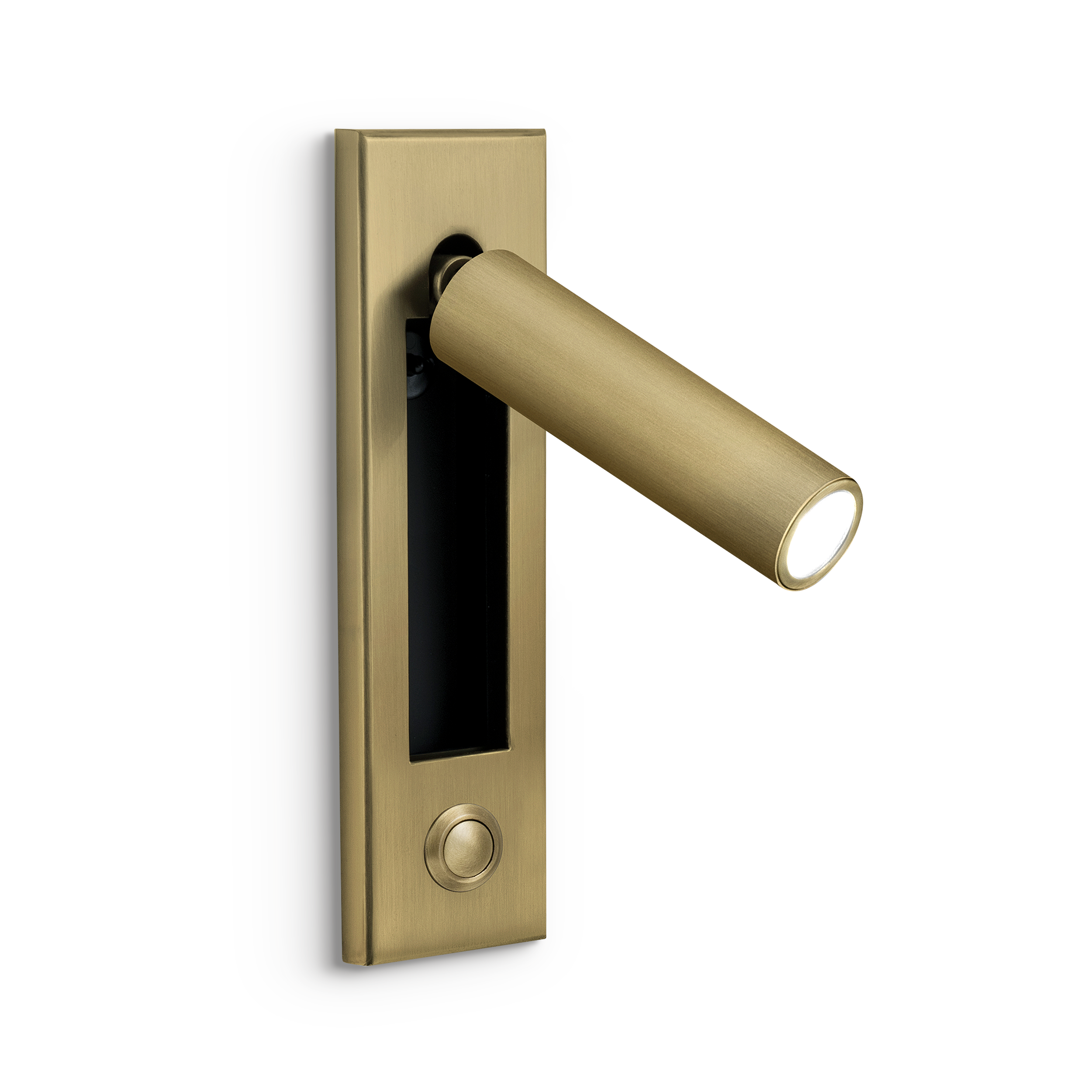

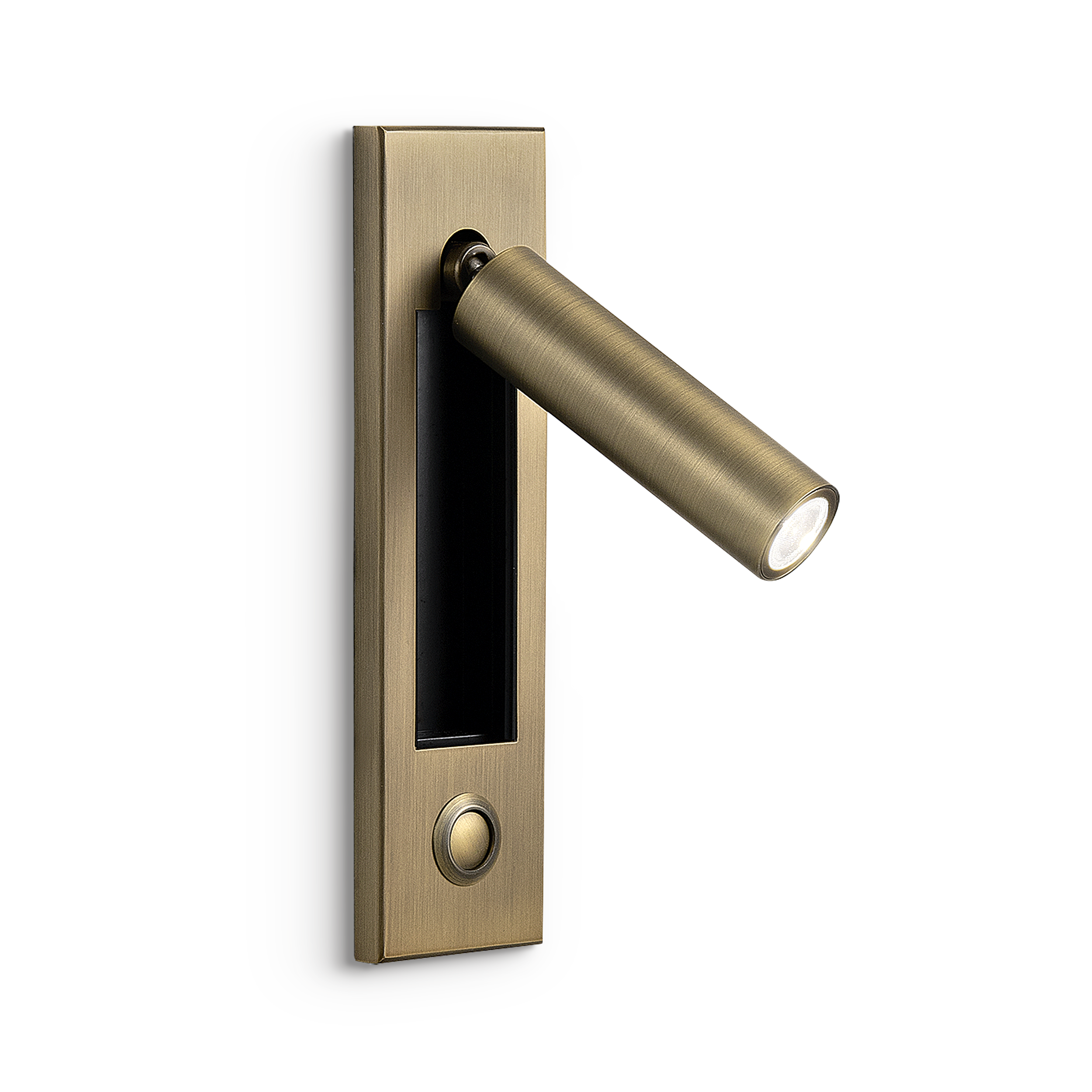

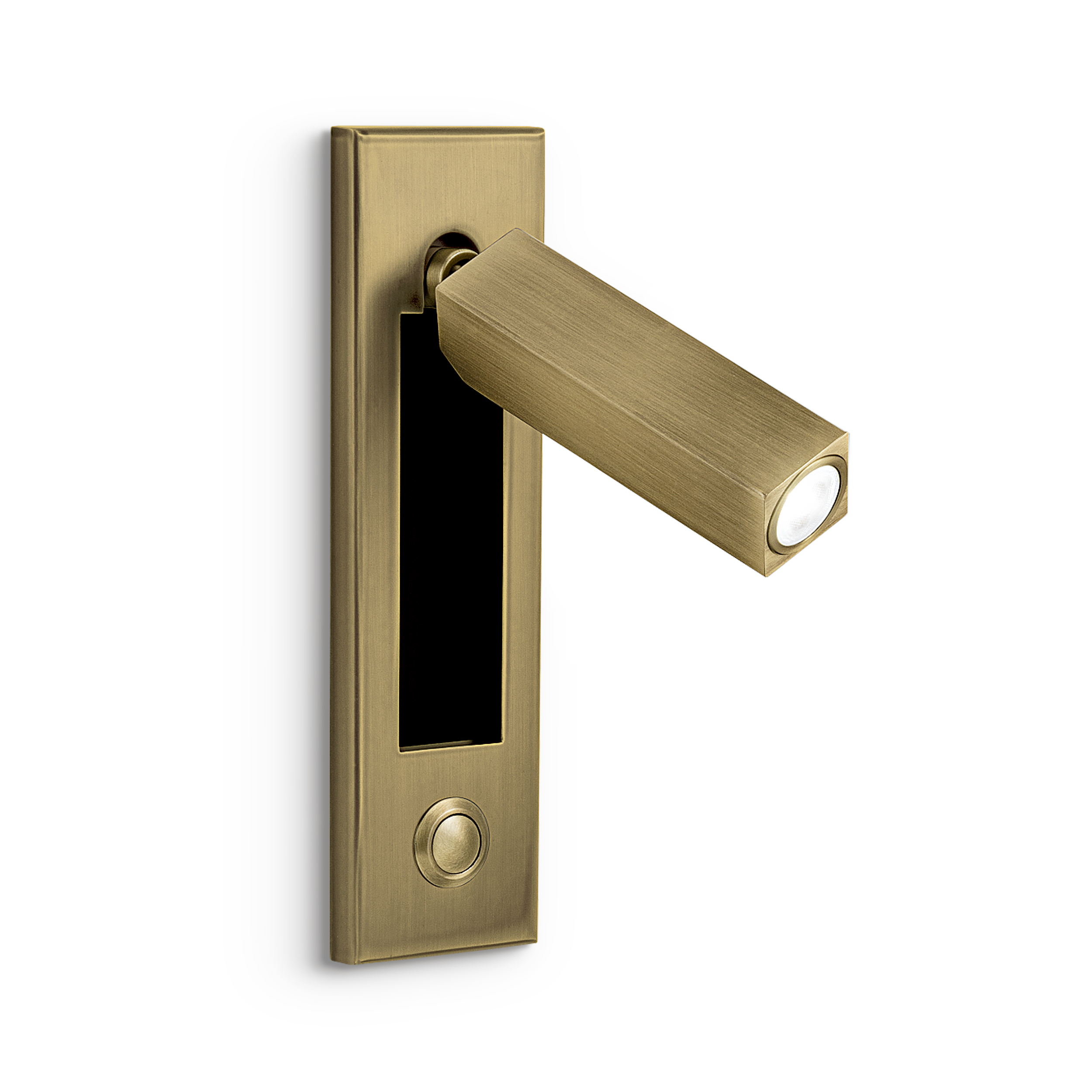

More from this collection
